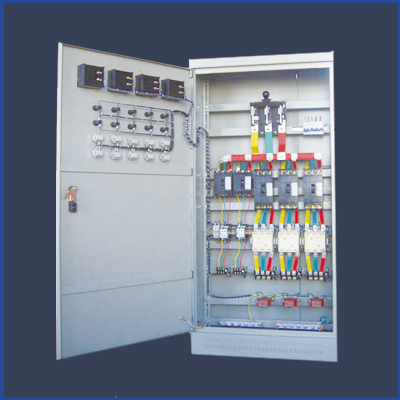

CK series low-voltage drawer type distribution cabinet is applicable to the low-voltage distribution system with AC 50Hz and rated working voltage of 380v-660v. It is used for power receiving, feeding, bus coupler, lighting, motor control and power compensation. It includes the functions of power center (PC) and motor control center (MCC), which meet the needs of industrial and mining enterprises, high-rise buildings, airports For power supply and distribution and power control in hospitals. This low-voltage drawer type distribution cabinet has novel and compact structure, reasonable layout, reliable operation, convenient maintenance, stable operation and other good performance.

使用環境條件

Service environmental conditions

1、周圍空氣溫度：上限+40℃，下限-10℃。

1. Ambient air temperature: upper limit + 40 ℃, lower limit - 10 ℃.

2、海拔：≤2000m（若超過海拔2000m訂貨時應說明）。

2. Altitude: ≤ 2000m (if it exceeds 2000m, it shall be explained when ordering).

3、周圍相對濕度：日平均值≤95%，月平均值≤90%。

3. Ambient relative humidity: daily average ≤ 95%, monthly average ≤ 90%.

4、周圍空氣：沒有明顯的塵埃、煙、腐蝕性或可燃性氣體、水蒸氣或鹽的污染。

4. Surrounding air: no obvious dust, smoke, corrosive or combustible gas, water vapor or salt pollution.

5、無經常性劇烈震動或常年腐蝕場所。

5. There is no place with frequent violent vibration or perennial corrosion.

結構特點

Structural features

GCK框架采用壓筋(模數E=25mm)組裝而成,框架全部構件都經過鍍鋅處理,零部件的組裝全部用自攻鎖緊螺釘或高強度六角螺釘緊固,各個零部件的尺寸均實行模數化,從而保證了各零件的通用性、互換性、再按需要加上門、檔板、隔板、抽屜、安裝梁等零件，組裝成品后有美觀、牢固、質量好等優點。柜體分成母線室、功能單元室、電纜室三個相互隔離區間，可防止事故擴散和便于帶電維修。

The GCK frame is assembled with compression bars (modulus E = 25mm), all components of the frame are galvanized, all parts are assembled with self tapping locking screws or high-strength hexagon screws, and the dimensions of all parts are modular, so as to ensure the universality and interchangeability of all parts, and then add door, baffle, partition, drawer, mounting beam and other parts as needed, After assembling the finished product, it has the advantages of beauty, firmness and good quality. The cabinet is divided into three mutually isolated sections: bus room, functional unit room and cable room, which can prevent the spread of accidents and facilitate live maintenance.

功能單元（抽屜單元）

Functional unit (drawer unit)

1、抽屜層高的模數為200mm。分為1/2單元、1單元、1.5單元、2單元、3單元五個尺寸系列。單元回路額定電流630A

1. The module of drawer floor height is 200mm. It is divided into five size series: 1 / 2 unit, 1 unit, 1.5 unit, 2 unit and 3 unit. Rated current of unit circuit 630A

2、每臺MCC柜多能安裝9個一單元抽屜或18個1/2單元的抽屜。

2. Each MCC cabinet can be installed with 9 one unit drawers or 18 1 / 2 unit drawers at most.

3、隔室的門板由主開關的操作機構與抽屜進行機械連鎖，主開關在合閘位置時，抽屜不能抽出。

3. The door panel of the compartment is mechanically interlocked with the drawer by the operating mechanism of the main switch. When the main switch is in the closing position, the drawer cannot be pulled out.

4、主開關的操作機構可用一把掛鎖鎖定在合閘或分閘位置，可地進行電器設備的維修。

4. The operating mechanism of the main switch can be locked in the closing or opening position with a padlock, which can safely carry out the maintenance of electrical equipment.

5、功能單元背面具有主電路進出機構，具有三位置功能，操作簡單可靠。

5. The back of the functional unit is provided with a main circuit inlet and outlet mechanism, which has a three position function, and the operation is simple and reliable.

6、抽屜單元采用旋轉式推進機構，具有三位置功能，操作簡單可靠。

6. The drawer unit adopts rotary propulsion mechanism, which has three position function and simple and reliable operation.

7、抽屜隔室中采用新型一次進行線罩，抽屜抽出后使之隔室內不會觸及垂直母線。

7. The drawer compartment adopts a new type of primary wire cover. After the drawer is pulled out, the compartment will not touch the vertical bus.
